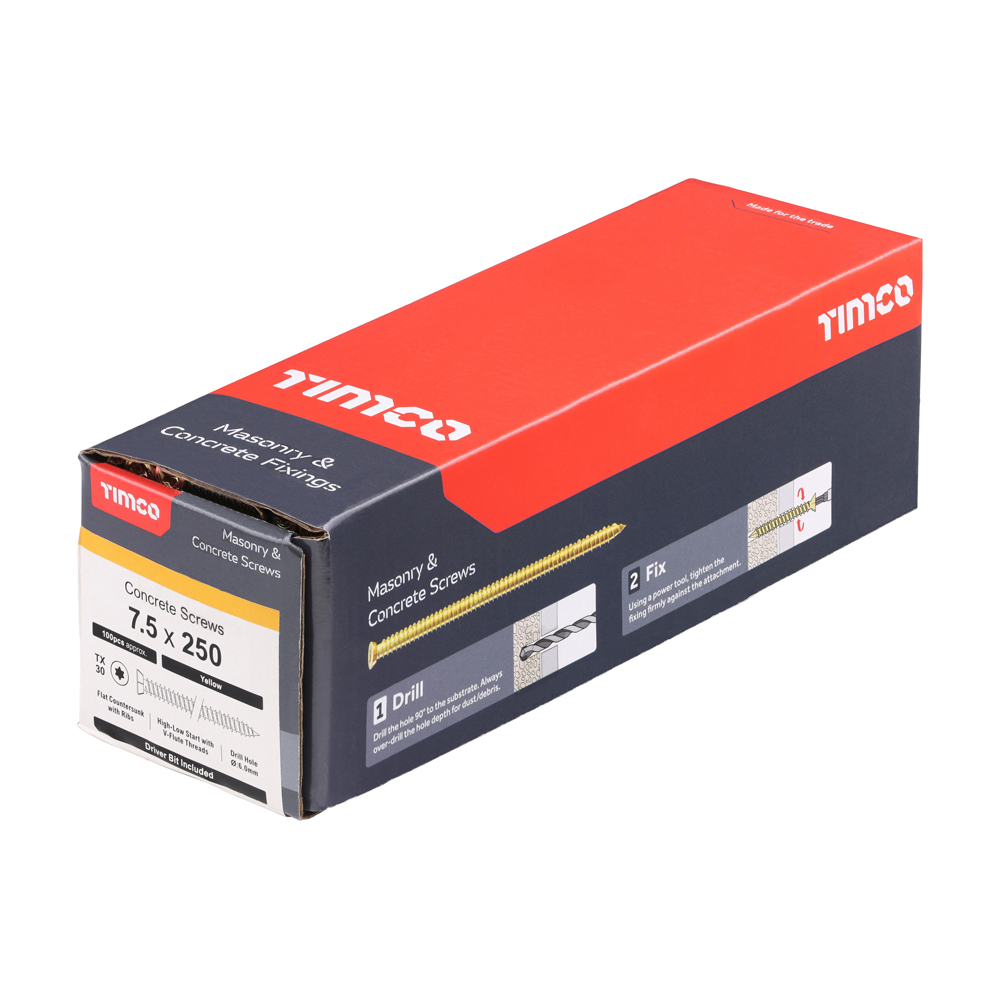

Concrete Screws - TX - Flat Countersunk - Yellow

7.5 x 250
Product Code: 00250TCON
Pack Type: Box
Pack Quantity: 100 Pieces
Barcode: 5056602021665
A rapid and effective light duty anchoring system for fixing into concrete,brick,stone,concrete block and wood. This through fixing provides a single solution and replaces traditional fixings such as nylon frame and hammer fixings.

• Designed to replace traditional masonry fixings
• TX30 TX Drive recess to reduce driver wear & prevent camming-out
• Serrated V-threads to achieve optimum insertion into all masonry types
• Zinc plated and yellow passivated for increased corrosion resistance
• High-Low thread on first 30mm to aid insertion and reduce torque
• Ideal for fitting windows and door frames
• Flat countersunk head with five locking ribs
• All steel,non-flammable fixing conforming to BS 7671 standard's 18th edition,which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
  • Product Specifications
Θ (mm) 7.5
Approval BS 7671:2018
Brand TIMCO
Brand TIMCO
Carton Qty (packs) 4
Corrosion Rating (1-5) 1 - Clean, dry & low humidity environments
Driver Bit Size [Driver Bit Size] TX30
Finish [Finish] Zinc & Yellow
Fixture Hole Size Θ (mm) 8
Head Type [Head Type] Flat Countersunk with Ribs
Included Items TX30 S2 Bit (Qty 1)
L (mm) 250
Material [Material] Carbon Steel
MFT (mm) 200
Min． Embed． Depth (mm) 50
MOQ 1
MOQ Increment 1
Pack Dimensions L x W x H (mm) 270 x 90 x 82
Pack Quantity 100
Pack Quantity Unit Pieces
Pack Type Box
Pack Weight (kg) 5.04
Pallet Qty (packs) 144
Point Type Sharp
Product Code 00250TCON
Recess Type [Recess Type] TX Drive
SKU Barcode 5056602021665
Substrates [Substrates] Wood, Concrete, Brick, Block, Stone
Thread Coverage Fully Threaded
Thread Type [Thread Type] High-Low Start with V Flutes
27 Variants Available
A rapid and effective light duty anchoring system for fixing into concrete,brick,stone,concrete block and wood. This through fixing provides a single solution and replaces traditional fixings such as nylon frame and hammer fixings.

• Designed to replace traditional masonry fixings
• TX30 TX Drive recess to reduce driver wear & prevent camming-out
• Serrated V-threads to achieve optimum insertion into all masonry types
• Zinc plated and yellow passivated for increased corrosion resistance
• High-Low thread on first 30mm to aid insertion and reduce torque
• Ideal for fitting windows and door frames
• Flat countersunk head with five locking ribs
• All steel,non-flammable fixing conforming to BS 7671 standard's 18th edition,which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
